Product Description

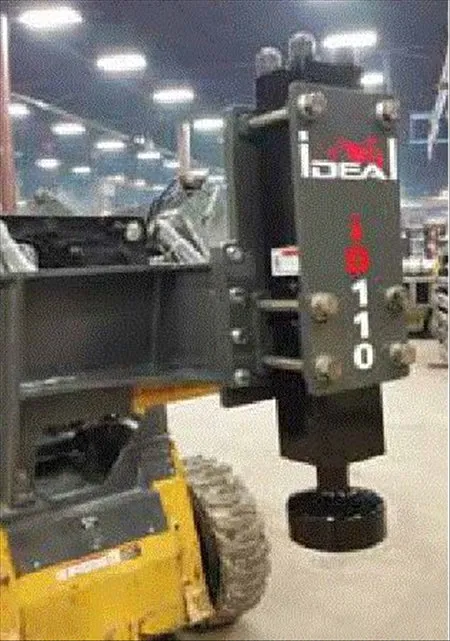

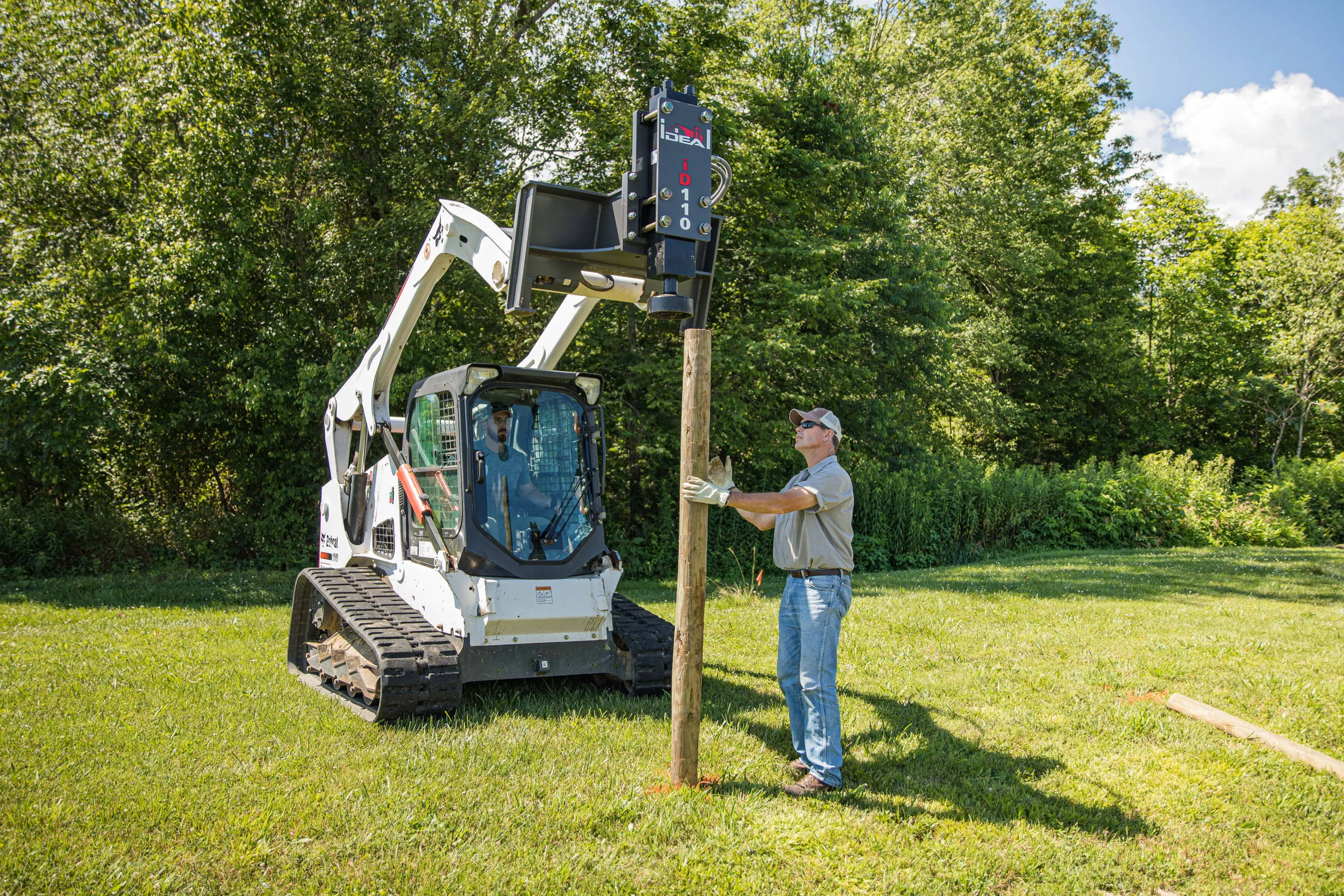

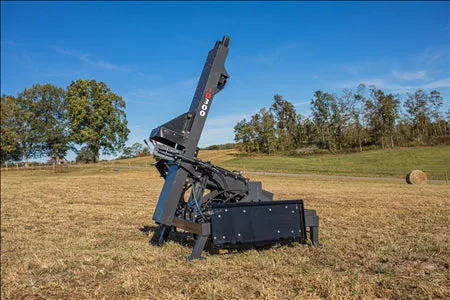

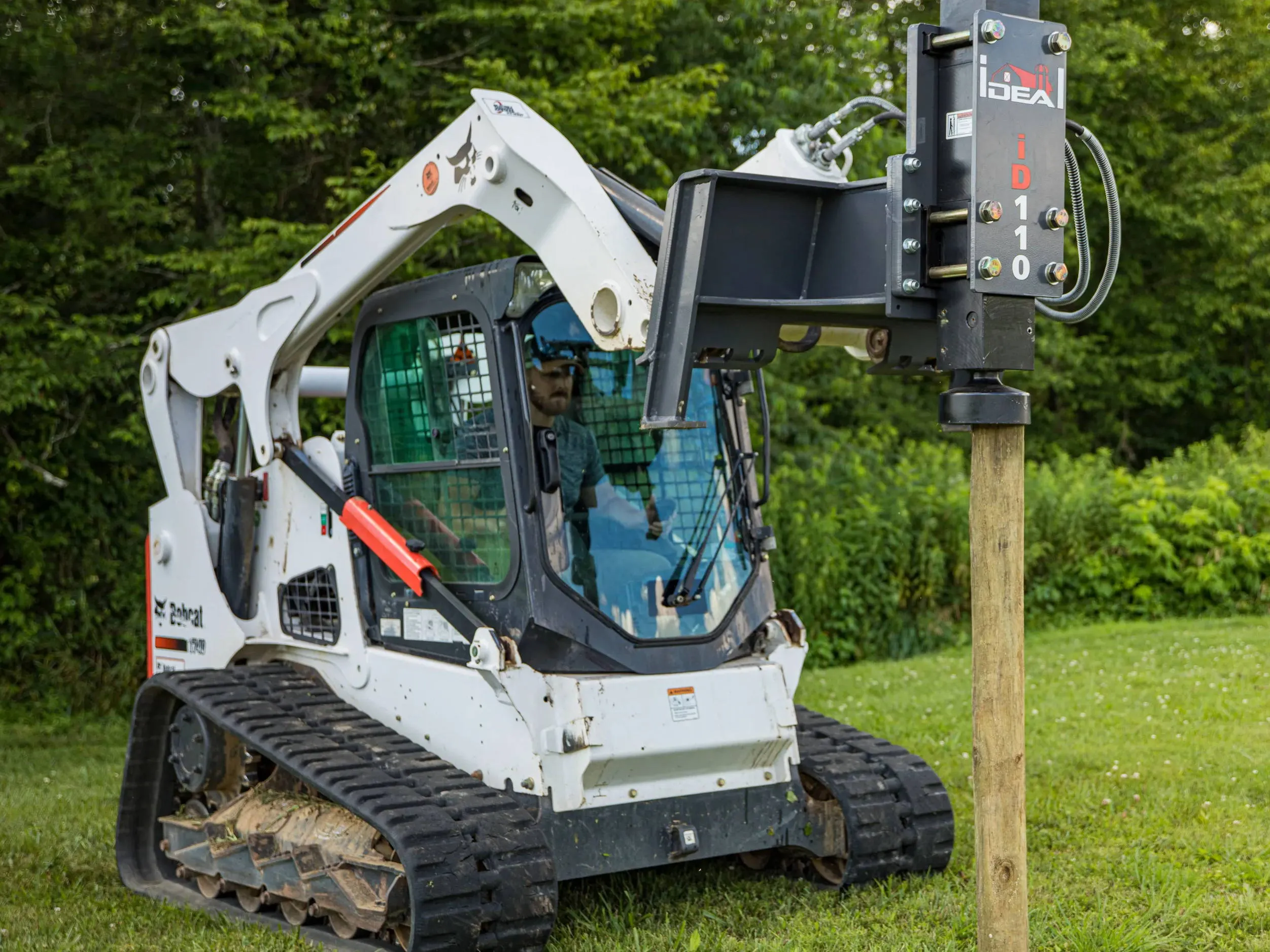

Ideal Post Pounders Heavy Duty Skid Steer - Vibratory Start/Electric Start Post Driver | 14HP Kohler | For Skid Steer
DESCRIPTION
The Vibrating Head Unit Post Driver from the 1000 and 750 Series offers a powerful and efficient solution for driving posts in a variety of ground conditions. Engineered with a high energy class of 1,150 ft-lb and delivering up to 800 blows per minute, this heavy-duty post driver makes quick work of even the most demanding tasks.
Its versatile design accommodates posts up to 12” in diameter and 12’ in height, making it ideal for agricultural, commercial, and construction applications. With a robust 5/8" steel plate frame, 3" chisel shaft, and adjustable mast stroke, this unit ensures durability and adaptability.
The driver head features interchangeable domed and flat-topped cups, allowing for seamless transitions between tasks. Additionally, safety and convenience are prioritized with features like a hydraulic post hugger, intuitive joystick controls, and included maintenance kits.
Key Features
- Energy Class Efficiency: 1,150 ft-lb energy class for powerful performance.
- Adjustable Mast Stroke: 67” stroke with 16” travel for handling varied post heights.
- Blow Rate: 400-800 blows per minute for quick and efficient operation.
- Heavy-Duty Frame: 5/8” steel plate and a 3” chisel shaft diameter.
- Interchangeable Heads: Domed cup and flat-topped driving heads included.
- Hydraulic System: Direct-mounted pump for smooth performance.
- Safety Features: Includes hitch lock, tilt safety chain, and more.
- Maintenance Ready: Comes with a nitrogen charge kit, filled nitrogen bottle, and a toolbox.
Detailed Specifications
| Specification | Details |
|---|---|
| Engine | 14 HP Kohler Engine |
| Hydraulic Pump | Direct Mounted for High Efficiency |
| Hammer Weight | 750 lbs |
| Post Size Capacity | Up to 12” diameter, 12’ height |
| Blow Rate | 400-800 blows per minute |
| Lifting Capacity (Min.) | 2,500 lbs |
| Steel Frame Thickness | 5/8” |
| Working Pressure | 2200 PSI |
| Chisel Shaft Diameter | 3” |
| Domed Cup Diameter | 9” OD |
| Energy Class | 1,150 ft-lb |
| Includes | Toolbox, nitrogen charge kit, filled nitrogen bottle |
| Weight of Post Driver | 1,250 lbs |
| Adjustable Mast Stroke | 67” |
| Hitch Options | Drop-pin, ball coupler, pintle ring |
In Package:
- Vibrating Head Unit Post Driver (1000 or 750 Series)
- Hydraulic Post Hugger with Safety Adjustments
- Interchangeable Driving Heads (Domed Cup & Flat-Topped)
- Tool Box for Repairs
- Nitrogen Charge Kit with Filled Nitrogen Bottle
- Assembly and Operation Manual
